01Nothing between the card and the screen
No queue, no clock, no wait for VSync. What qBlank adds on top of the card itself is about a millisecond, and the overlay shows it.
No queue in the capture path
Frames are copied into a triple buffer and the filter returns at once. Anything arriving faster than it can be shown is dropped, never buffered, so delay cannot accumulate.
No graph clock
The DirectShow graph runs without a reference clock, so nothing is held back waiting for a presentation time.
Tearing allowed
A flip-model swap chain with one frame of queue and VSync off by default — the single biggest lever there is. Direct3D 11 by default, Vulkan as an option, under the same rules.
Conversion on the GPU
YUY2, UYVY, NV12, planar 4:2:0, RGB and P010 are unpacked in a pixel shader. Nothing touches the CPU between arrival and drawing.
Nothing waits on a disk
Saving settings and screenshots, asking the drive for space, listing devices, opening folders: each area has a thread of its own. No frame waits on a disk or a driver, and no area waits on another.

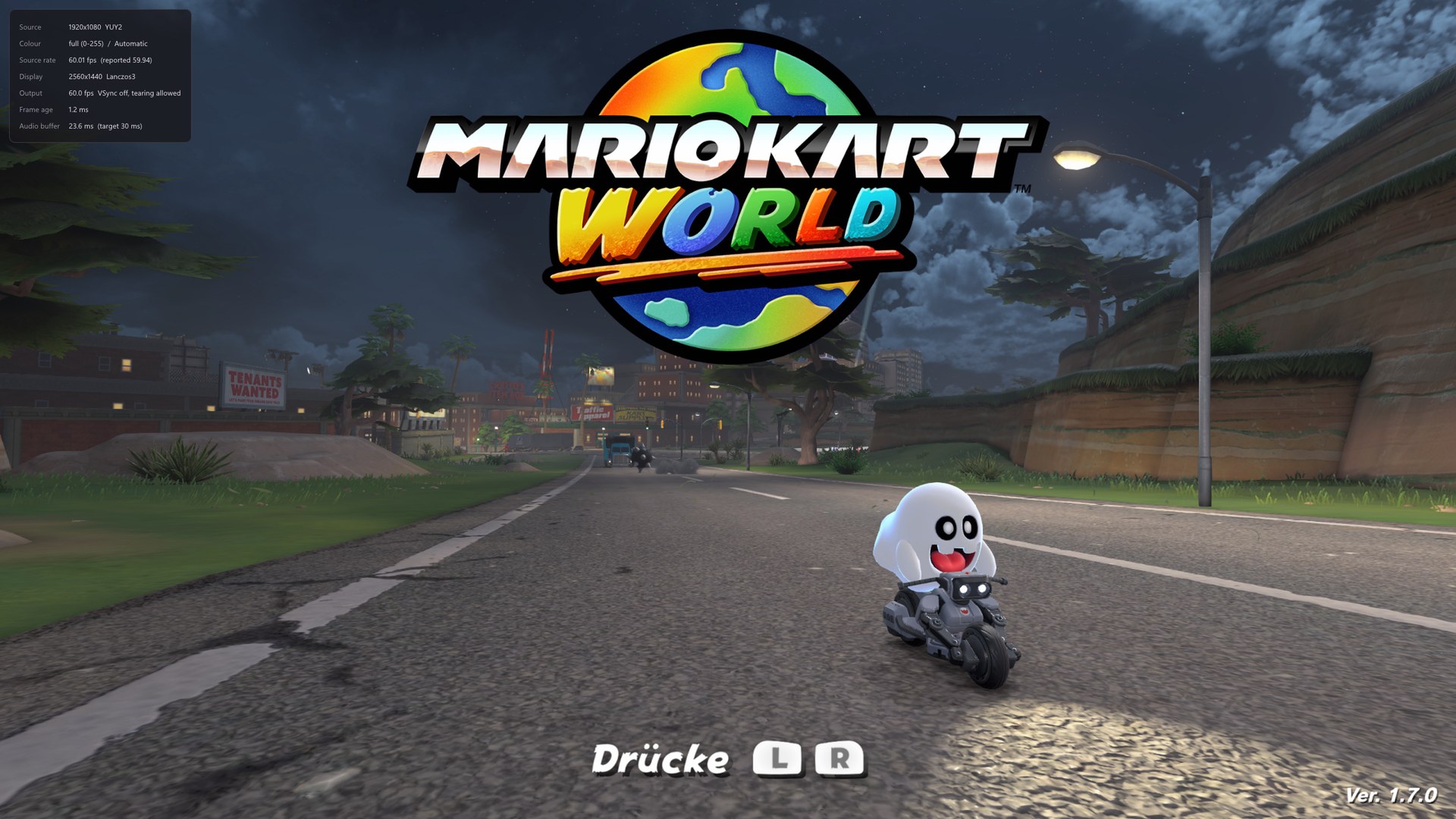

And it shows you the bill
The overlay times the stretch qBlank is answerable for: from a frame arriving to the present that hands it over, with upload, deinterlacing, filters and scaling inside. What the card does before and the screen after is not folded in.
02Record, capture, pass it on
For any DirectShow device: HDMI and analogue cards, USB dongles, webcams.
Recording
H.264, H.265 or AV1 through NVENC, Quick Sync, AMF, x264 or x265. The audio is the master clock, so the output is constant frame rate and does not drift — measured at 1 ms over 15 seconds. The free space on the drive is shown as the recording time it is worth, and a recording stops itself before the drive fills up. If the encoder cannot keep up, a notice says so.
Encoder controls
Rate control, preset, tuning, look-ahead, adaptive quantisation and multipass, under one set of names translated into each vendor's own.
Audio
The card's own audio or any Windows recording device, out through WASAPI, with clock drift corrected on the fly. A microphone can go on a track of its own in the recording, and is never played back.
Screenshots
PNG or JPEG at source resolution through Windows Imaging Component, so no ffmpeg is needed. JPEG XR keeps the HDR range and needs none either; AVIF does. A switch grabs the finished window instead, interface and all, and Ctrl+F10 puts the shot on the clipboard rather than on disk.
Virtual camera
Offer the picture to OBS, Discord or a browser at the source's own resolution and frame rate — and to anything that cannot take that, at whatever it asks for instead.
High dynamic range
PQ and HLG are decoded to linear light, tone mapped with BT.2390 for an ordinary screen or passed through as scRGB for an HDR one.
Profiles
Device, input, capture format and every picture and audio setting, one per source, on Ctrl+1 to Ctrl+9 — or on none at all: a profile can name the video standard that means it, and the standard the search settles on then picks the profile.
03Set up while you watch
Every setting takes effect on the next frame, so it is judged on the picture rather than from memory. Where a value is easier to see than to type, it is set on the picture itself.
A settings window of its own
On its own graphics device, so it can sit on a second monitor while the picture runs on the first. Controls that cannot apply to the source are absent rather than greyed out.
Found, not scrolled to
Ctrl+F finds any setting, through typos and the names other programs use. A right click puts a slider back to its default.
Colour range, measured
Full or limited is read off the picture rather than inferred from the pixel format, with the numbers behind the verdict on show. F6 measures again, for the one thing that changes without touching the format: an option in the card's own driver.
All filters off
Shift+F12 shows the signal as it arrives, with deinterlacing, crop and aspect kept — the quick answer to whether a filter is the problem.
A window that fits
1×, 2× or 3× the source from the right-click menu, and Shift keeps the shape while resizing. Borderless keeps its taskbar button and Snap; a red dot on that button says it is recording.
Quick actions in the tray
An optional icon with the actions you pick — recording, screenshots, folders, profiles — in the same menu style as everything else. Start menu and desktop shortcuts are a button away.
And for analogue consoles
An analogue source needs more than a viewer usually offers. qBlank finds the video standard, deinterlaces, cleans up composite and can put the scanlines back — all in real time.
04It cleans up composite

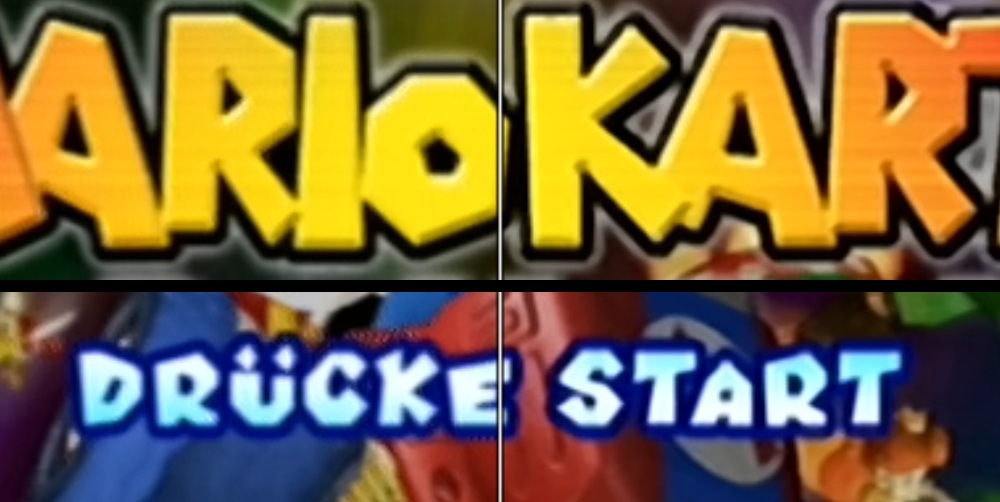

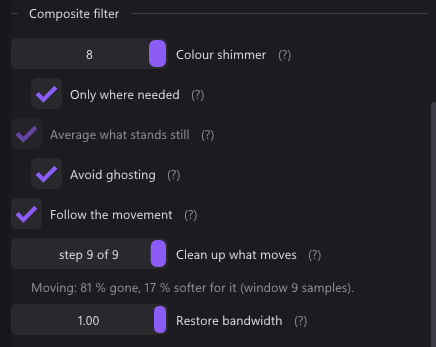

Composite carries colour and brightness on one wire and they leak into each other. Most viewers leave that alone. qBlank removes it in real time, and the numbers behind every setting were measured on real hardware rather than guessed.
| Half | What it does | What it costs |
|---|---|---|
| Extended history | Looks twelve frames back and takes the dot crawl out of every frame before the rest reads it, also where something moves or fades: around text, in transparencies. Where the crawl repeats every two or four frames: PAL, PAL 60, PAL M, PAL N, NTSC. | GPU time, no frame of delay. |

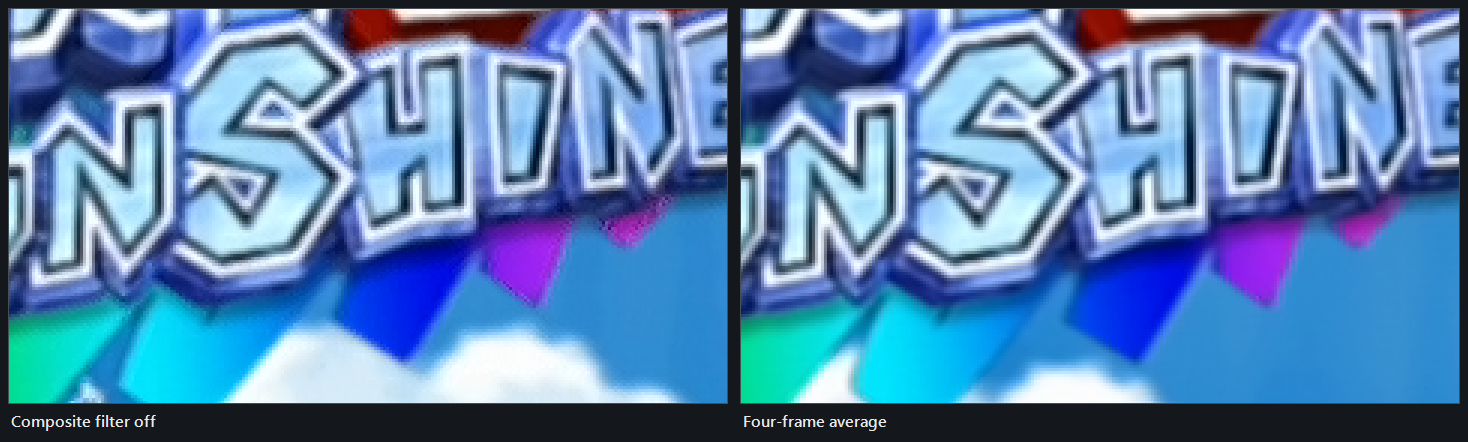

| Average what stands still | Cancels dot crawl wherever the picture stands still, averaged over the crawl cycle measured for the source. Four frames for PAL — measured 1.91, 2.62, 1.90 and 0.78 at lags of one to four — two or three elsewhere. | Nothing at all. |
| Synchronous demodulator | Reconstructs the subcarrier out of the brightness and subtracts it, so moving content is covered too. Removes 81 % of the pattern at a window of nine samples. | 17 % of horizontal sharpness. |

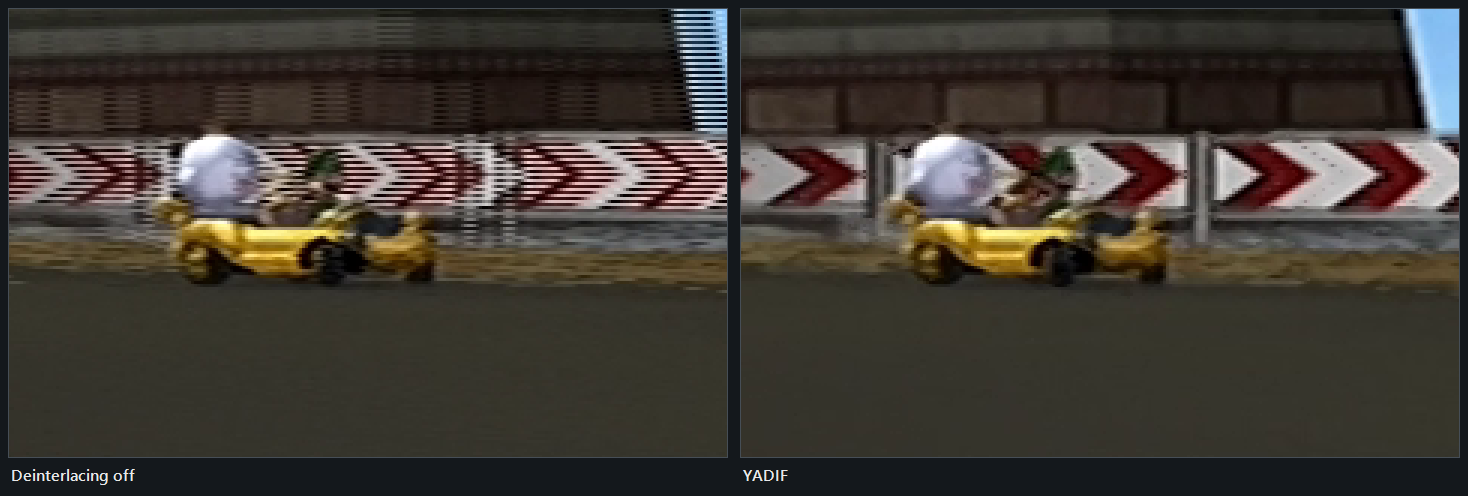

05Five deinterlacers, and it measures which you need

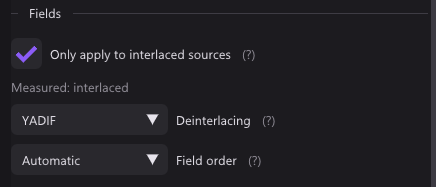

Whether a source is interlaced is measured from the picture, not read from the media type — a media type is entitled to say so and frequently does not.
06It works out the video standard on its own
An analogue decoder has to be told whether it is looking at PAL, NTSC or SECAM, and getting it wrong costs you either the picture or the colour. Leave it on automatic and qBlank finds it — and keeps finding it, so switching a console between 50 and 60 Hz needs nothing from you.
The card is only half the answer
All a decoder reports is whether it has locked, and that is about line frequency. PAL 60, NTSC M, PAL M and NTSC 4.43 all lock on the same 525 lines, and it reports the wrong one just as confidently.
So the picture decides
The candidates are compared on what they actually produce: how much colour there is, and whether black stays black. Decoding PAL as SECAM does not give a grey picture — it gives a bright red one where black should be, and that is what the second measurement catches.
Two seconds, from wrong to confirmed
Measured against a GameCube at 60 Hz, starting from a deliberately wrong standard: 1.7 to 2.4 seconds. The list is walked quickly first and patiently only if that finds nothing, so a console switched between 50 and 60 Hz is over in a fraction of the time.
Two standards on one carrier
PAL 60 and NTSC 4.43 carry colour at the same frequency and differ only in that PAL reverses the phase every other line. The wrong one of the pair does not decode nonsense — it decodes less, so counting colour rewards it for the omission. qBlank measures the reversal itself instead, and drops the standard that fights the signal.
Or ask it yourself
F7 runs both stages again on the picture in front of you — the one case the automatic search cannot see, because colour that is wrong is still colour. It takes under two seconds, and it tells you what it found either way.
And the format follows from it
A card advertises the same format list whatever is plugged into it. Once the standard is known the raster is too, so the resolution offered by default matches what really arrives instead of upscaling a console to 1080p inside the card — and the rate list gains the signal's rate: 50 under PAL, 59.94 under NTSC, a flat 60 under PAL 60.
It knows when not to guess
A comparison needs a picture to compare on. If the scene moves during the round, or the screen is essentially black, the round is thrown out rather than believed — a wrong answer held confidently is worse than waiting a moment.

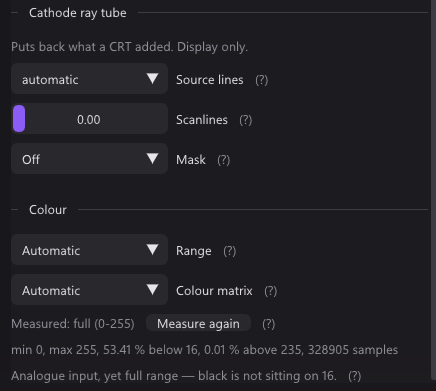

07And it can put the cathode ray tube back
240p artwork was drawn for a display that had gaps between its lines and a coloured mask over its phosphors. On a flat panel the absence of both is itself a distortion. Off by default, and display only — a recording takes the picture from upstream of this pass.
Say what the console draws
A card that starts at 720p, or a dongle with a scaler of its own, hands over 1080 lines from a console that drew 480 — and nothing in the picture says reliably which number is real. Source lines is where you say it: 240 and 288 for a 60 or 50 Hz SNES, Mega Drive, PS1 or N64, 480 and 576 for a GameCube, PS2, Dreamcast or Wii. PAL 60 is the odd one — NTSC's raster at PAL's colour.

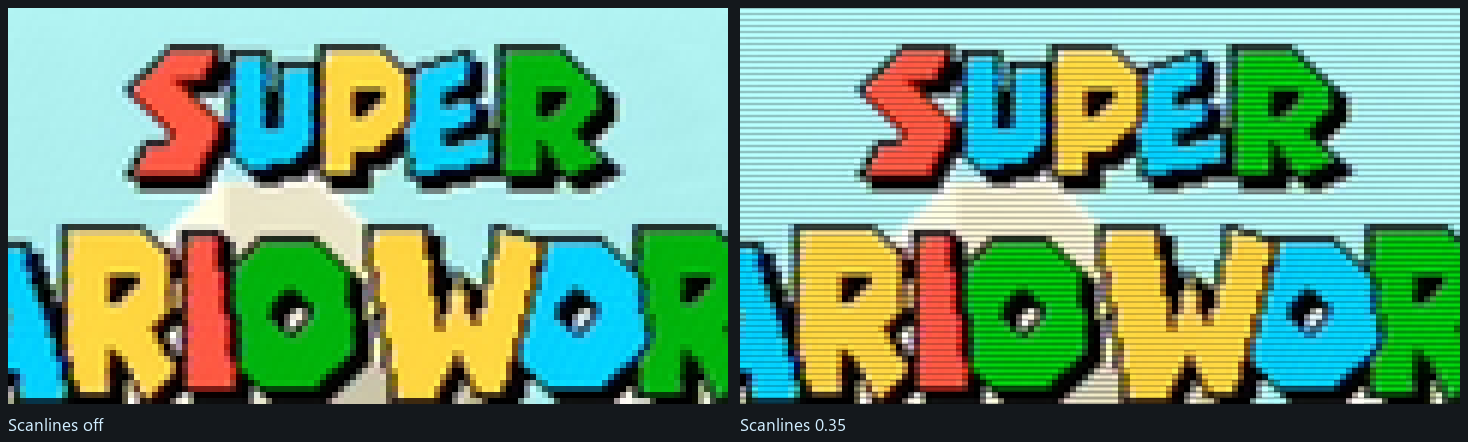

Then the gaps land where they belong
The declared count becomes the number of output rows per real picture line, which is where a scaled capture stops being a problem: 1080 lines from a 480-line console is 2.25 rows each, and the scanlines sit on the lines the console actually drew rather than on the ones the scaler invented.

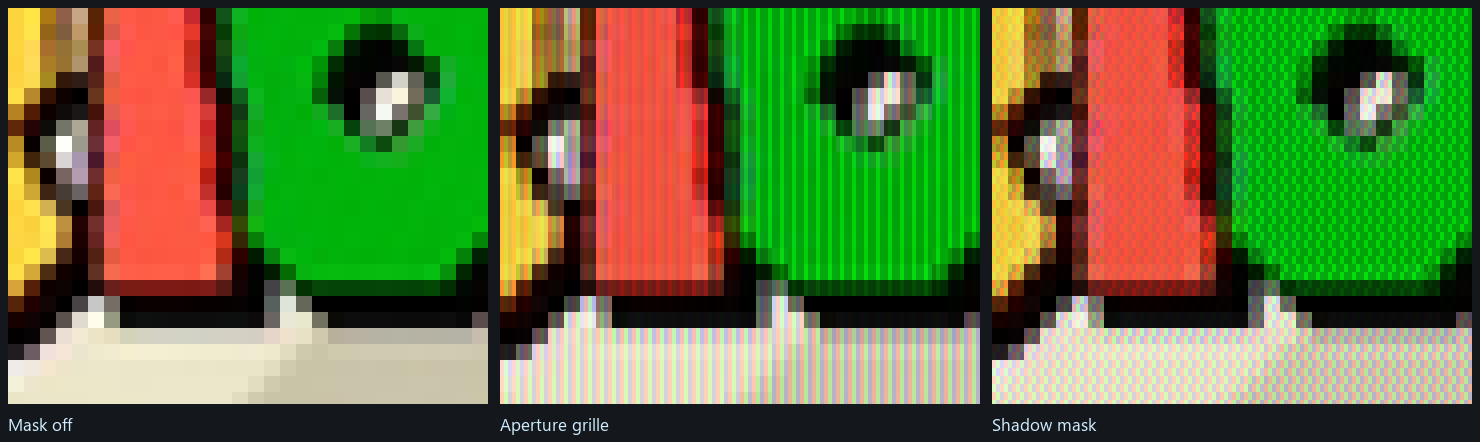

Scanline() and Mask() over a still, rather than photographed off the screen: the effects are display-only by design, so a screenshot taken inside qBlank does not contain them.08It finds the console's pixels

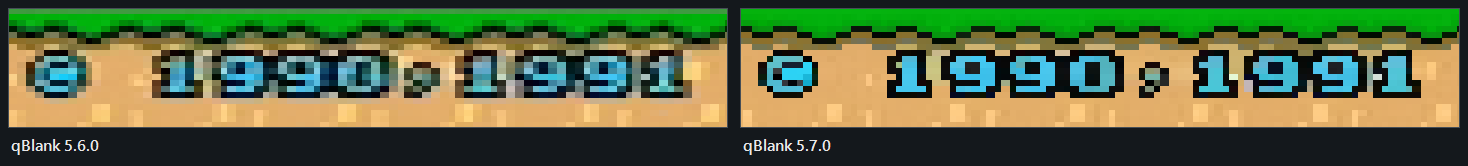

A card samples a line 720 times; a SNES drew 256. Tell qBlank the Source width, and it measures where each console pixel lies in the picture and draws it as one block. On an analogue source it also rebuilds each pixel from the samples the card blurred across it, and if the width is not set, it notices pixel art and suggests the width.
09What it is not
Scenes, overlays, compositing and streaming are not here and are not planned. For those, use OBS — and note that a card grants its capture pin to one process at a time, so the two cannot hold the same card at once.
| Requirement | |
|---|---|
| Windows 10 or later | the virtual camera installs with one UAC prompt |
| A DirectShow capture device | almost every card, including USB ones |
| ffmpeg | for recording and AVIF screenshots, fetched and kept current by a button |
